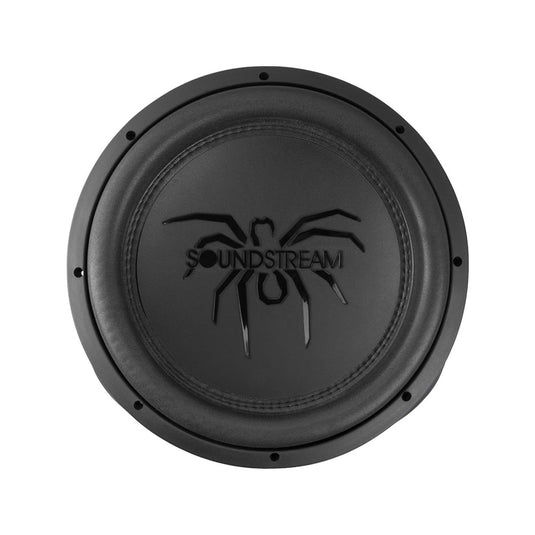

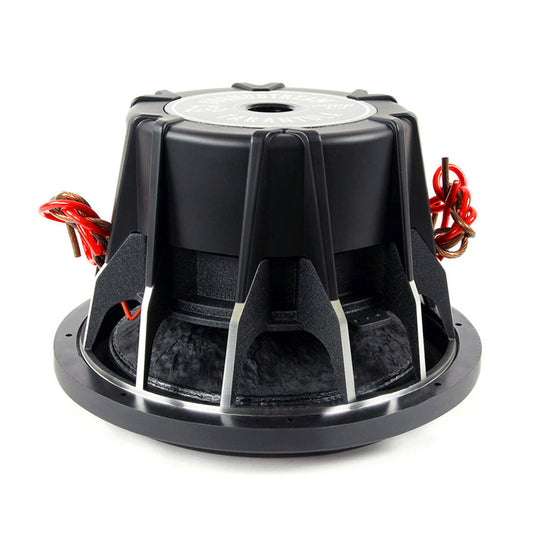

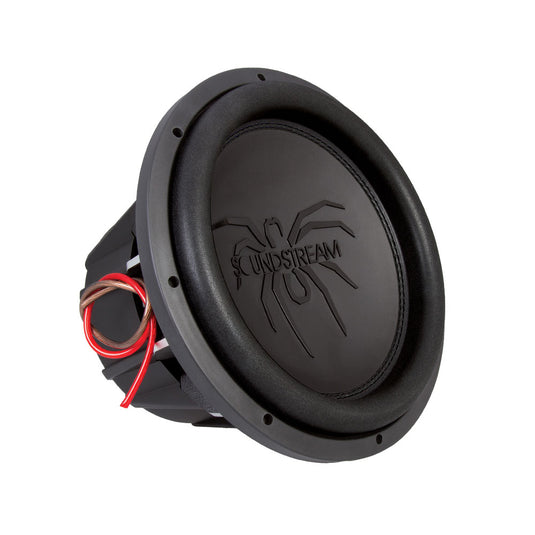

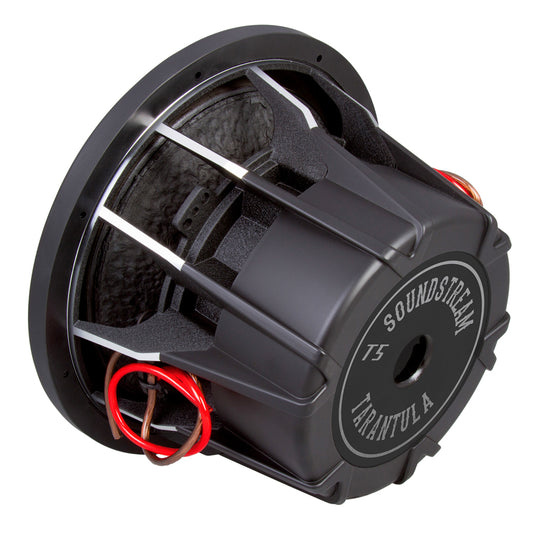

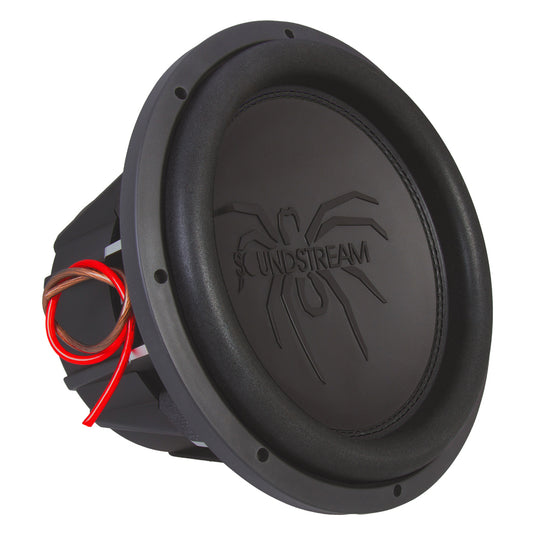

T5.124 | Tarantula T5 2,000W 12" Dual 4-Ohm Subwoofer

Regular price $179.99
Sale price $179.99 Regular price
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.
Tarantula T5 Series High-Output 12" Dual 4-Ohm Subwoofer
Max Power 2,000 Watts
RMS Power 1,000 Watts
Mounting Depth 7.00"
Voice Coil Configuration 3" DVC 4Ω
  • Description

  • Specifications

  • Support

  • Features

Tarantula subwoofers have grown to meet various performance and placement goals in recent years, keeping your, the Soundstream fanatic, suggestions in mind. However, more often than not, we hear your calls to bring back a legend. Improvements include direct connect wire leads, over-saturated 12mm top plate and t-yoke, & double-stitched cone to high-density polyether foam surround for improved sound quality. Key components that you expect from T5 remain; big ass 3” voice coil, a triple-stack magnet assembly, high-density Spruce pulp sub-cone, and the iconic black-on-black Soundstream Spider. The T5 can handle a lot of power, so be sure to choose a suitable amplifier as these bass monsters want lots of power. Its different impedance configurations offer wiring flexibility you'll appreciate as your system changes and grows, so you can always pull maximum power from your amp. It works well in sealed and ported enclosures, so you can choose what kind of bass you want to hear and feel. Note: If you are wiring this DVC sub for lower impedance, make sure that your amp is compatible. Subwoofer Wiring Diagram

Specifications  T5.124
Max Power 2,000 Watts
RMS Power 1,000 Watts
Efficiency (1w/1m) 84.6
Voice Coil Configuration 3" DVC 4Ω
Mounting Depth 7.00"
Optimum Sealed ft3 1.00"
Optimum Ported ft3 2.00"


Thiele/Small Parameters

Imp. (Ohm) Dual 4
Re 7.2
Fs (Hz) 35.8
Qes .748
Qms 6.562
Qts .672
Le (mH) 1.0274
Diam 12
Vas (L) .75
BL 26.700
Mms (g) 334.400
Sen (db) 84.6
RMS 1,000
Mounting D 7.00"

Recommended Enclosures
Sealed Opt 1.00 ft
Ported Opt 2.00 ft
Round Port WxL 4" x 14.5L"
F3 (Hz) 31.1


T5 Subwoofer Owners Manual [.PDF]


Note: If you are wiring this DVC sub for lower impedance,

make sure that your amp is compatible. Subwoofer Wiring Diagram

Overcompensating Motor Structure for Increased Magnetic Strength

12mm T-Yoke & Top Plate Improve Low-Frequency Dynamics

Vented T-Yoke & Frame Reduces Voice Coil Heat Build-up

Non-Magnetic Non-Resonate Die-Cast Aluminum Frame

3” 4-Layer Voice Coil w/ Direct Connect Wire Increases Power Handling

High-Temperature Tolerance Adhesives Resist Thermal Failure

Non-Transfer Spruce Pulp Cone w/ UV & Chemical Protection

Stitched and Glued Surround/Cone Joints for Strongest Bonding

Extended Excursion Polyether Foam Surround w/ UV & Chemical Protection

Dual Poly-Cotton Suspension Dampen Violent Accelerations

1-pc Gasket/Trim Ring w/ Concealed Mounting Holes Included
