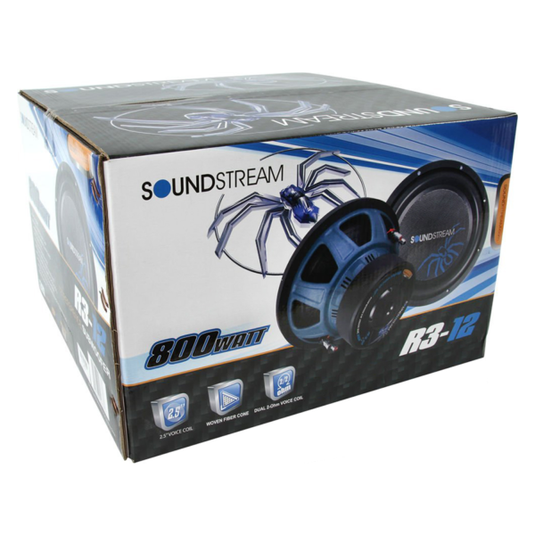

R3.12 | Reference R3 12" Dual 2-Ohm Subwoofer

LEGACY
This is a pre order item. We will ship it when it comes in stock.
12" High Roll Surround Subwoofer
Max Power 1,600 Watts
RMS Power 800 Watts
Mounting Depth 6.875"
Voice Coil Configuration 2.5" DVC 2Ω
  • Description

  • Specifications

  • Support

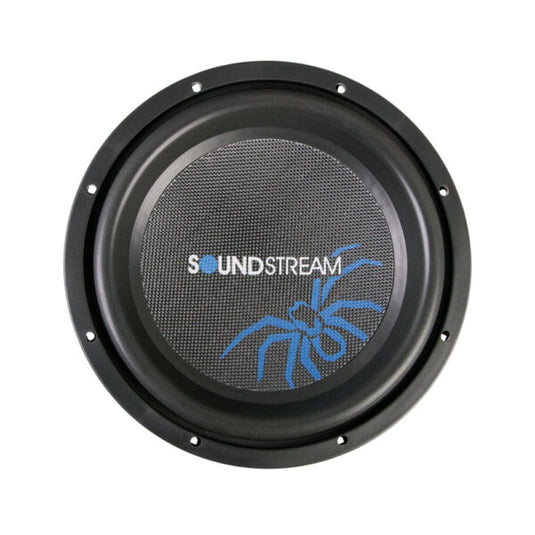

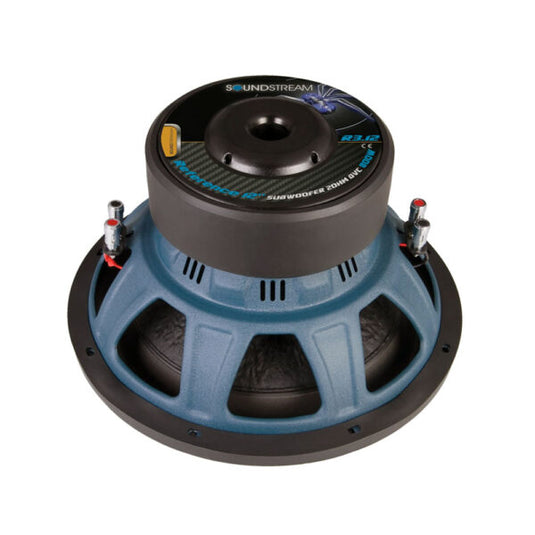

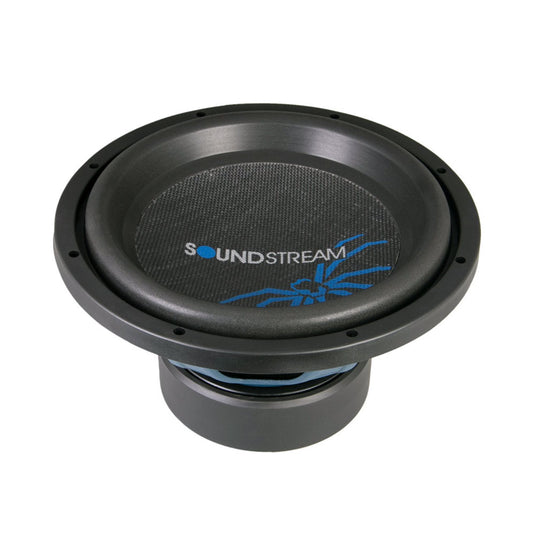

Soundstream R3-12 12" Subwoofer (Dual 2-Ohm Voice Coil)

When it comes to raw power, clean bass, and unshakable performance, the Soundstream R3-12 isn’t just another subwoofer—it’s a game-changer in the world of car audio. Designed for both SPL beasts and SQ purists, this 12-inch competition-grade subwoofer delivers everything you need to dominate in the lanes or turn heads on the streets.

Built with a heavy-duty 3-inch 4-layer BASV voice coil, triple-stacked magnets, and a non-pressed pulp cone reinforced with fiberglass, the R3-12 produces deep, controlled bass with tight responsiveness and durability that lasts. Whether you're going sealed for tight precision or vented for full-on ground-shaking boom, this sub is ready to perform.

📌 For help with your dual 2-ohm voice coil configuration, check out this handy Subwoofer Wiring Diagram to ensure your amp and wiring match perfectly.

Key Features at a Glance

  • Size: 12 Inches
  • Power Handling: 1000W RMS / 2000W MAX
  • Impedance: Dual 2 Ohm Voice Coils (DVC)
  • Voice Coil: 3" 4-layer BASV high-temp coil
  • Cone: Non-pressed paper cone with epoxy-infused fiberglass backing
  • Surround: High-roll polyether foam for extended excursion
  • Magnet: Triple-stacked high-density motor structure
  • Basket: Die-cast aluminum frame
  • Backplate: Vented pole piece for enhanced cooling
  • Mounting Depth: 7.28"


Why Choose the Soundstream R3-12?

Engineered for Earth-Shaking Bass

The R3-12 is built to handle massive wattage, making it ideal for high SPL car audio systems. With its oversized motor structure, the subwoofer delivers powerful low-end frequencies with precision. This isn’t your average 12-inch sub—it’s a high-performance subwoofer that competes with the best in its class.

Built to Last

The rigid die-cast aluminum basket ensures the structure remains steady during hard-hitting sessions, while the fiberglass-reinforced cone resists flexing and maintains sonic integrity. Its epoxy-treated construction adds extra strength to survive extreme vibrations and long hours of play.

Thermal Control

The vented backplate and aluminum voice coil former allow for efficient heat dissipation. That means cooler operation even under heavy loads—less risk of thermal shutdown, and more playtime without interruptions.

Versatile Sound Signature

Whether you're aiming for tight, punchy bass in a sealed enclosure or deep, boomy lows in a ported box, the R3-12 adapts. Its balanced blend of SPL and SQ makes it one of the most versatile 12-inch car subwoofers out there.

Technical Specifications

Attribute

Value

Subwoofer Size

12 inch

Voice Coil

Dual 2 Ohm, 3” 4-layer BASV

Power Handling

1000W RMS / 2000W MAX

Cone Material

Non-pressed paper with fiberglass

Surround Type

Polyether foam (high-roll)

Basket

Die-cast aluminum

Magnet Structure

Triple-stacked ferrite magnets

Backplate

Vented

Mounting Depth

7.28 inches

Sensitivity

86.7 dB

Frequency Response

20Hz – 250Hz

Recommended Enclosure

Sealed or Ported

Installation Compatibility & Tips

  • Ideal for trunk installations and larger hatchbacks
  • Performs best in 1.25 – 2.5 cu. ft enclosures (sealed or ported)
  • Works great in custom car audio setups
  • Use an amp rated for 1000W RMS at 1 Ohm (when wired in parallel)

Pro Tip: When running this dual 2-ohm subwoofer, wire both coils in parallel for a 1-ohm load or series for 4 ohms. Check your amplifier's compatibility before wiring. Not sure how to wire it? Use this detailed Subwoofer Wiring Diagram to get it right the first time.

Who Is This For?

  • Car audio enthusiasts upgrading from factory sound
  • SPL competitors looking for hard-hitting low frequencies
  • SQ lovers wanting clear, articulate bass without distortion
  • Anyone seeking a rugged, reliable, and loud 12-inch subwoofer

Specifications  R3.12
Max Power 1,600 Watts
RMS Power 800 Watts
Efficiency (1w/1m) 84.66
Voice Coil Configuration 2.5" DVC 2Ω
Mounting Depth 6.875"
Optimum Sealed ft3 1.5
Optimum Ported ft3 2.25

Thiele/Small Parameters
Imp. (Ohm) Dual 2
Re 2.1672
Fs (Hz) 33.72
Qes 1.1741
Qms 6.2245
Qts 0.9878
Le (mH) 0.9794
Diam 12
Vas (L) 59.8989
BL 10.4883
Mms (g) 281.2842
Sen (db) 84.66
RMS 800
Mounting D 6 7/8"
CutOut Diam 11.5

Recommended Enclosures
Sealed Opt 1.5 ft
Ported Opt 2.25 ft
Port WxL 6"x 7"
F3 (Hz) 34

R3 Subwoofers Owners Manual [.PDF]


Note: If you are wiring this DVC sub for lower impedance,

make sure that your amp is compatible. Subwoofer Wiring Diagram
