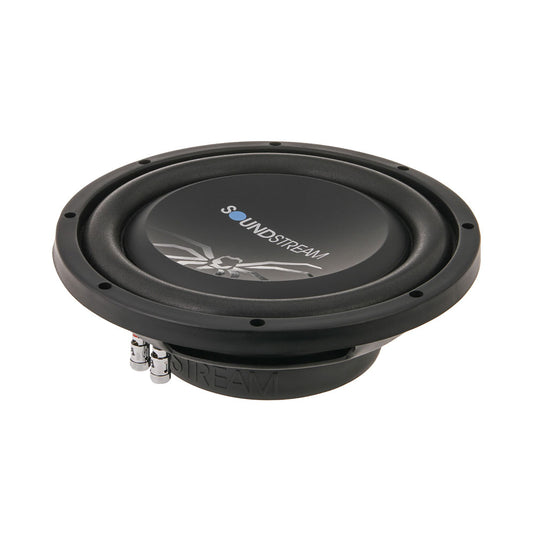

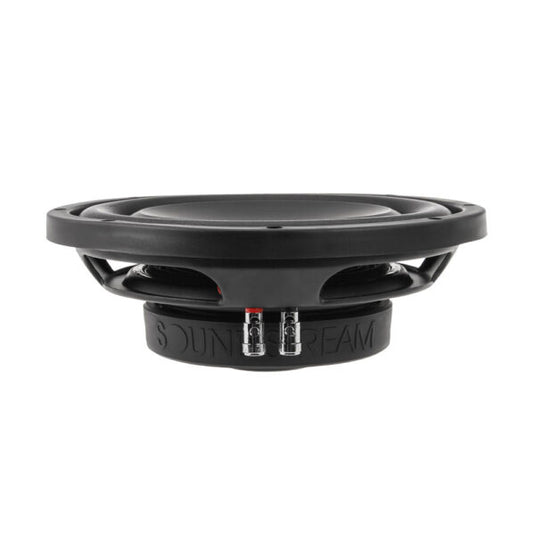

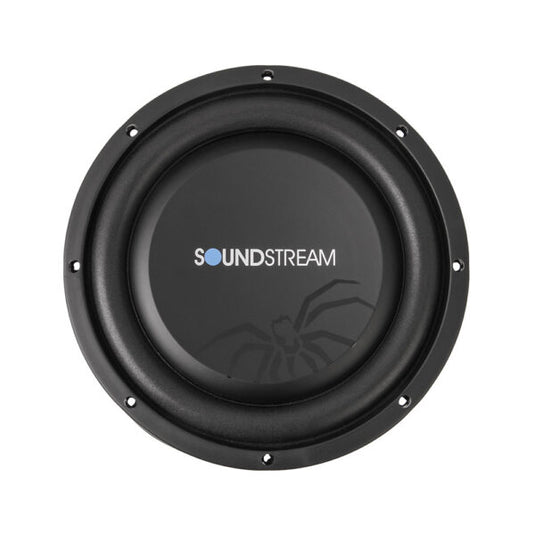

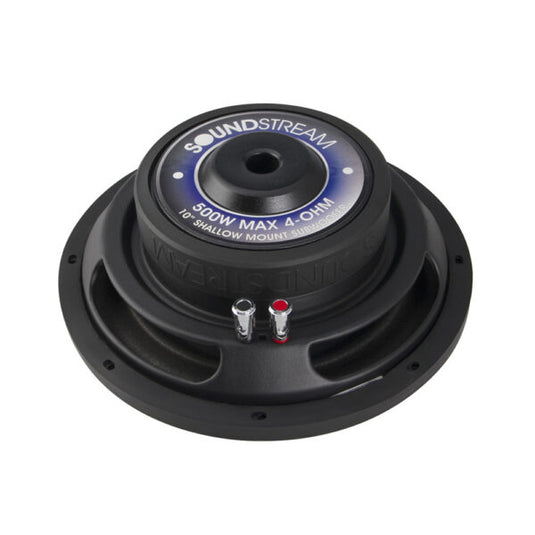

Picasso Shallow Subwoofers combine performance and value. These shallow subwoofers accomplish their best sound in small sealed enclosures, with minimal power requirements, thanks to efficiencies in the cone and suspension design.
If you are doing a system in a #Truck or #Powersports vehicle and need bass where its least expected or probable, fit our Picasso Shallows! The beauty in subwoofer technology is woofers can be smaller and engineered to give you bass opportunities whereas you couldn't before.
Features: Pressed Spruce Pulp Cone with Polypropylene Coating, Polyether Foam Surround, Formed Steel Frame, all while being UV & Chemical Coated Protection.
| Specifications | PSW.104 |
|---|---|
| Max Power | 500 Watts |
| RMS Power | 250 Watts |
| Efficiency (1w/1m) | 84.2 |
| Voice Coil Configuration | 2" SVC 4Ω |
| Mounting Depth | 3.25" |
| Optimum Sealed ft3 | .75" |
| Optimum Ported ft3 | N/A |
|
Thiele/Small Parameters |
|
|---|---|
| Imp. (Ohm) | Single 4 |
| Re | 3.20 |
| Fs (Hz) | 49.54 |
| Qes | 1.201 |
| Qms | 8.312 |
| Qts | 1.049 |
| Le (mH) | 1.0274 |
| Diam | 10 |
| Vas (L) | .59 |
| BL | 9.07 |
| Mms (g) | 99.09 |
| Sen (db) | 84.2 |
| RMS | 250w |
| Mounting Depth | 3.25" |
| Recommended Enclosures | |
|---|---|
| Sealed Opt | .75" ft |
| Ported Opt | N/A |
| Port WxL | N/A |
| F3 (Hz) | N/A |
