PN1-3000DX | Picasso Nano Series 3000W Monoblock 1 Channel Amplifier

Regular price $164.99
Sale price $164.99 Regular price
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.
Picasso Nano Series 1Ch Amplifier

Max Power 3,000 Watts
RMS Power 4Ω N/A
RMS Power 4Ω - Bridged N/A
RMS Power 2Ω 450W x 1
RMS Bridged 1Ω 800W x 1

  • Description

  • Features

Experience serious bass control and unmatched reliability with the Soundstream PN1.3000DX, a monoblock Class D amplifier engineered to deliver powerful low-end performance in a compact, efficient footprint. Ideal for subwoofer applications, this amp offers clean, distortion-free power and precise tuning options to get the most out of your low-frequency setup.


With up to 3,000W max output, the PN1.3000DX is packed with premium features, starting with a clipping LED indicator that protects your speakers by alerting you to signal distortion during tuning. Its 4-way protection system guards against thermal overload, short circuits, voltage spikes, and DC offset. The fully variable crossover system includes adjustable subsonic filters, low-pass filters, and a 0–12dB bass boost at 45Hz, so you can fine-tune your bass exactly how you like it. And at the heart of it all is a robust MOSFET power supply, delivering consistent, stable output with minimal heat and distortion.


1-Channel Monoblock Class D Amplifier

Max Power Output: 3,000W

RMS @ 2Ω: 600W x 1

RMS @ 1Ω: 800W x 1

Clipping LED Indicator for Safer Tuning

4-Way Protection: Short, Thermal, Overload & DC Offset

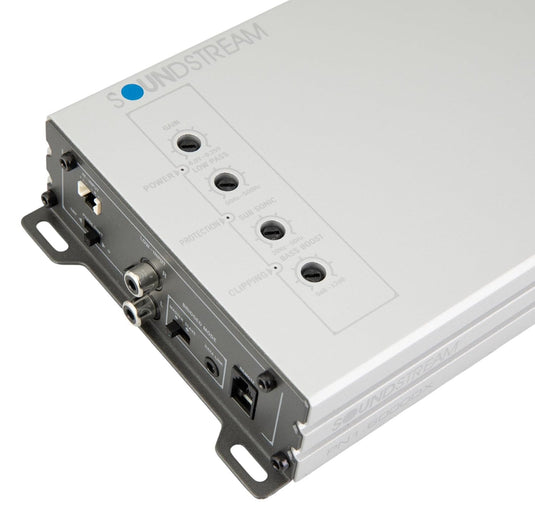

Variable Crossovers:

Low-Pass: 50Hz–250Hz (12dB/Octave)

Subsonic Filter: 20Hz–50Hz (12dB/Octave)

Bass Boost: 0–12dB @ 45Hz

180° Phase Inversion Switch

Frequency Response: 20Hz–500Hz

Total Harmonic Distortion: <0.05%

Signal-to-Noise Ratio: 80dB

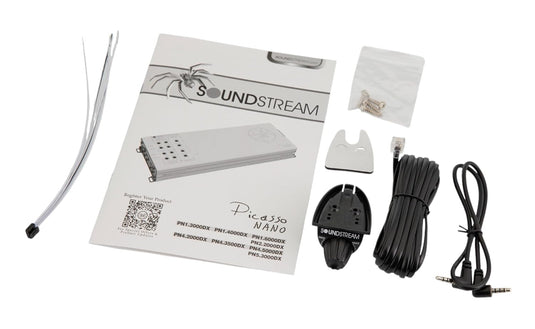

Dash-Mount Remote Gain Control Included

Dimensions: 5.9" (W) x 1.5" (H) x 9.7" (L)

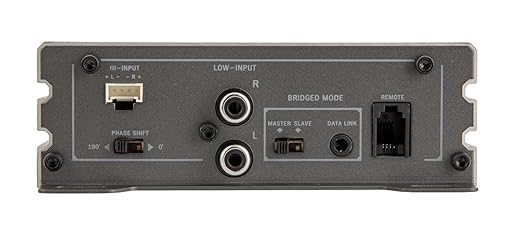

RCA Low-Level & Speaker-Level Inputs with Auto Turn-On

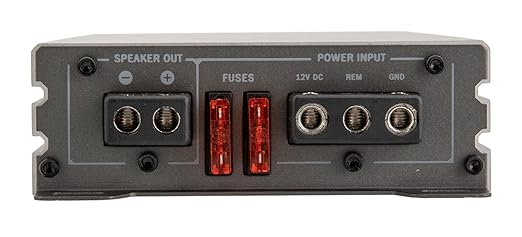

Direct Connect Power/Ground and Speaker Terminals for Clean Installation
