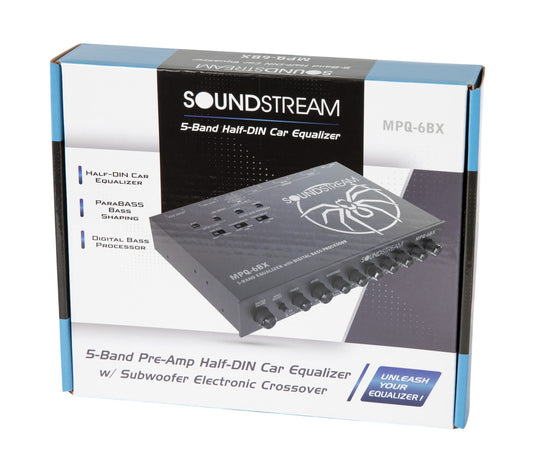

Those who want the most out their car audio system will truly appreciate MPQ-6BX. Affectionately called “An EQ On Steroids”, MPQ-6BX is a high-end preamplifier equalizer that is capable of enhancing the sound quality of any system. Multiple audio inputs allow for maximum connectivity with all of your favorite source units. Unlock the best equalization from any system with BMPQ-6BX!

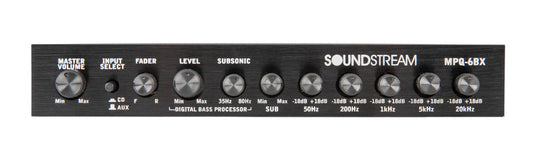

While being housed in a compact ½ DIN sized chassis, the MPQ-6BX is truly a feature-laden processor. It also features a 4 channel, 2-way, 18 dB/octave car audio crossover with a fader. MPQ-6BX also includes a subwoofer level control, master volume control.
- Multiple inputs
- ParaBASS low frequency contouring
- Pre-amp gain of 20dB
- Wide and Sweep parametric bass control
- Subwoofer level control
- Bass Maximizer effect control
- Digital Bass Processor

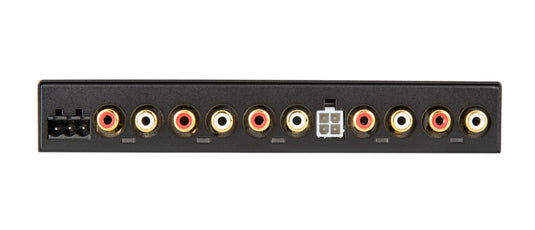

Inputs:
Inputs: 3 (AUX/Low/High)
Input Impedance: 20kΩ / 60Ω(High input)
Outputs:
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 7V RMS/12V Peak
Output Impedance: 150Ω
Performance:
Total Harmonic Distortion: 0.01%
Frequency Response: 20Hz-20kHz
Signal to Noise: 110dB
Subsonic Frequencies: 35-80Hz
Equalizer Frequencies: 50Hz, 200Hz, 1KHz, 5KHz, 20KHz
Equalization Cut/Boost: ±18dB
General:
Power Supply: High Headroom PWM Switching
Current Draw: 250mA
Recommended Fuse Rating: 1A
Dimensions: 7”W x 5.1”D x 1.2”H
