ST2.500D Amplifier

Stealth Series 2Ch Micro-Amp
Max Power500 Watts
RMS Power 4Ω75W x 2
RMS Power 2Ω125W x 2
RMS Bridged 4Ω250W x 1
Dimensions (3”w x 1.5”h)3.75”

Category: Tags: , ,

Description

As if harnessing power into the original Stealth amps wasn’t enough, Stealth Shot 500w amps take the mini amp game to the next level. Using the latest integrated circuit Class-D full range amplifier technology never before has this level of awesomeness been packed into an even smaller 3” chassis.

The line-up includes a Quad Shot 4 channel, Double Shot 2 channel, and a Single Shot monoblock. Each configuration has sufficient pre-amp crossovers for any system, accepting hi-level or low-level audio signals. For applications without a source unit, consider linking these pocket-sized shooters to the Bluetooth-enabled Stealth 4-channel.

Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)

Specifications

Stealth Shot Amplifier Features:

Hybrid Aluminum Alloy Heatsink for Optimum Dissipation

2-ohm Minimum Impedance Operation

MOSFET Power Supply w/ Audiophile Grade IRTM Transistors

Military Grade SMT PCB Maintains Dynamic Performance

Direct Short, Thermal, & Overload Circuits Protect Amplifier

250mV-12V High Level or Low-Level RCA Input

Automatic Turn-On Hi-Level Signal Sensing

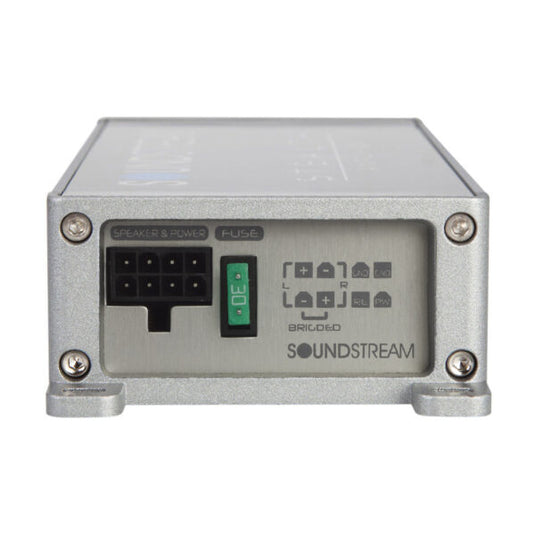

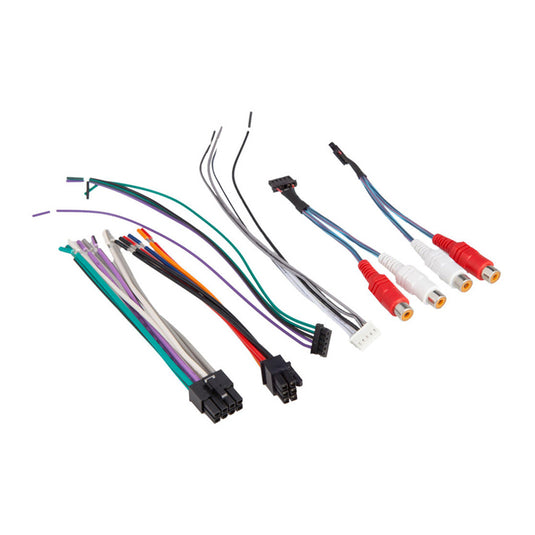

Quick Disconnect RCA/High-Level Wire Harness

Quick Disconnect Power and Speaker Output Harness

Full Variable 12dB High Pass, Low Pass Crossovers

Amplifier Dimensions 3″W x 1.5″H x 3.75″W

Support

Stealth Shot Amplifier Owners Manual [.PDF]
