RN1-3000D | Rubicon Nano Series 3,000W Class D Monoblock Amplifier

Regular price $199.99
Sale price $199.99 Regular price
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.

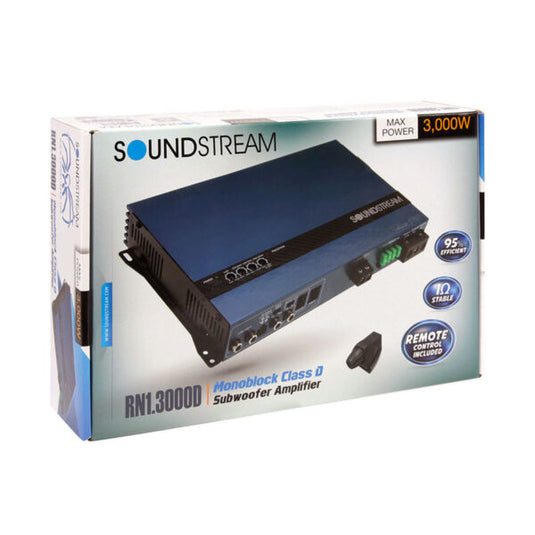

Rubicon Nano Class D Subwoofer Amplifier
Max Power 3,000 Watts
RMS Power 4Ω 600W x 1
RMS Power 2Ω 900W x 1
RMS Power 1Ω 1,500W x 1

  • Description

  • Specifications

  • Support

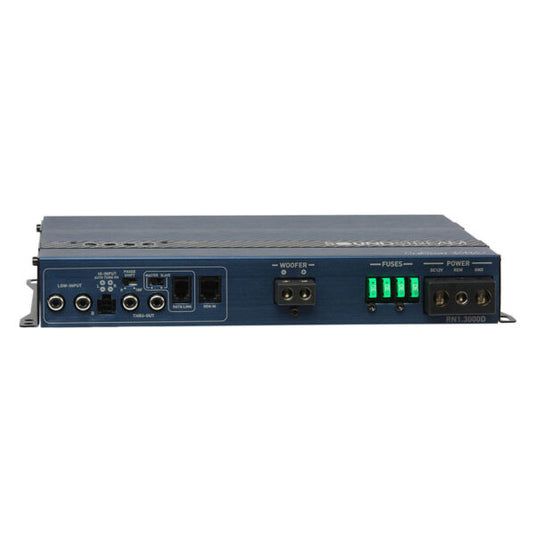

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice several key improvements; Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability. Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)

SPECIFICATIONS RN1.3000D
Max Power 3,000 Watts
RMS Power @ 4Ω 600W x 1
RMS Power @ 2Ω 900W x 1
RMS Power @ 1Ω 1,500W x 1

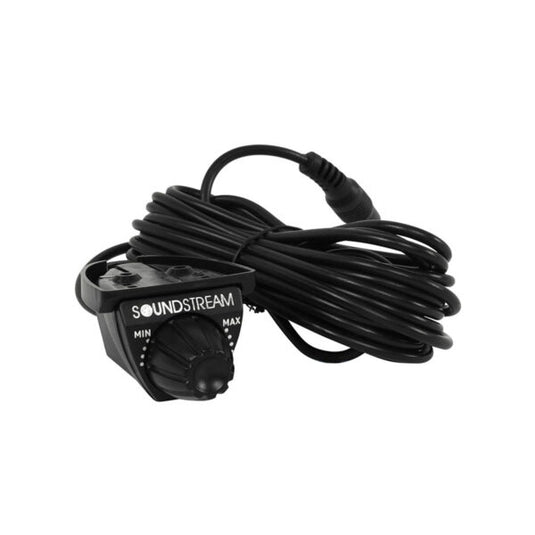

Remote Gain Control Included
Low Pass Filter 50Hz-500Hz
High Pass Filter N/A
Bass Boost 0-12dB
Bass Boost Frequency 45Hz
Subsonic Filter 20Hz-50Hz
Frequency Response 20Hz-22KHz
S/N 104dB
Input Sensitivity 200Mv-6V
THD <0.1%
Operation Voltage 9V-16V DC
Fuse Rating 30A x 4
Dimensions (8.25"W x 2.75"H) 10.25" L
